Components of Solar Power Systems

Components of Solar Power Systems are integral to harnessing solar energy efficiently and sustainably. As an experienced energy plant engineer specializing in renewable energy, I have had the privilege of overseeing numerous solar power projects and observing the critical elements that constitute these systems. Solar power systems, whether photovoltaic (PV) or solar thermal, comprise various components that work in unison to convert sunlight into usable energy. Understanding these components is essential for optimizing the performance and reliability of solar power installations.

Components of Solar Power Systems include solar panels or collectors, inverters, and storage solutions, among others. Each element plays a specific role in the energy conversion process. For instance, in PV systems, solar panels capture sunlight and convert it into direct current (DC) electricity, which is then transformed into alternating current (AC) by inverters for grid compatibility. In contrast, solar thermal systems utilize collectors to concentrate solar energy, generating heat that is used to produce electricity. Additionally, advanced monitoring and control systems, like Retgen by Rast Teknoloji, enhance the operational efficiency and longevity of these installations by providing real-time data analysis and remote management capabilities.

What are the Components of Solar Power?

Solar power systems have become a cornerstone of renewable energy solutions worldwide, particularly given their role in reducing carbon emissions and dependency on fossil fuels. As an experienced energy plant engineer specializing in renewable energy, I have observed various solar power installations and their integral components. Solar power systems can be broadly categorized into two main types: solar photovoltaic (PV) systems and solar thermal power systems. Each of these types comprises distinct components that contribute to the overall functionality and efficiency of the system.

What are the Main Components of Solar Thermal Power Systems?

Solar thermal power systems, unlike PV systems that convert sunlight directly into electricity, utilize solar energy to produce heat, which is then used to generate electricity. Based on my extensive experience in managing and overseeing solar thermal projects, the following components are critical to the operation of these systems:

  1. Solar Collectors: Solar collectors are pivotal in solar thermal systems. They capture and concentrate sunlight to produce high temperatures. There are several types of solar collectors, including parabolic troughs, solar power towers, and dish/engine systems. Parabolic troughs, which I have frequently encountered, consist of long, curved mirrors that focus sunlight onto a receiver pipe running along their focal line. The concentrated heat is transferred to a fluid within the pipe, typically synthetic oil, which reaches temperatures of up to 400°C.
  2. Heat Transfer Fluid (HTF): The HTF plays a crucial role in solar thermal power systems by transporting the absorbed heat from the solar collectors to the power block. In most installations I have observed, synthetic oil is used as the HTF due to its high thermal stability and capacity to reach elevated temperatures. The heated fluid is then circulated through a heat exchanger to produce steam.
  3. Heat Exchangers: Heat exchangers facilitate the transfer of heat from the HTF to water, generating steam that drives the turbines. Effective heat exchange is vital for the system’s efficiency, and I have seen various configurations and materials employed to optimize this process.
  4. Steam Turbines: Steam turbines are essential for converting thermal energy into mechanical energy, and subsequently into electrical energy. The high-pressure steam generated in the heat exchanger is directed onto the blades of the steam turbine, causing it to spin and drive the generator. The efficiency and reliability of steam turbines are critical, as they directly impact the overall performance of the solar thermal power plant.
  5. Generators: Connected to the steam turbine, generators convert mechanical energy into electrical energy. The electricity produced is then transmitted to the grid. I have worked with different types of generators, each selected based on the specific requirements of the power plant and the grid it serves.
  6. Thermal Energy Storage (TES): One of the significant advantages of solar thermal power systems is the ability to store thermal energy for use during periods of low solar radiation or at night. TES systems typically use molten salts due to their high specific heat capacity and thermal conductivity. This feature enhances the reliability and dispatchability of solar thermal power, which I have found particularly beneficial in maintaining a stable power supply.
  7. Cooling Systems: Cooling systems are necessary to condense the steam exiting the turbine back into water, which is then recirculated through the system. I have seen both wet and dry cooling methods employed, depending on the water availability and environmental considerations of the plant location.

In addition to these core components, solar thermal power systems require sophisticated control systems to monitor and manage the various processes, ensuring optimal performance and safety. This is where advanced solutions like Retgen come into play.

Retgen by Rast Teknoloji offers a comprehensive, cloud-based system for remote monitoring and management of renewable energy plants, including solar thermal power systems. Its ability to provide real-time data analysis, predictive maintenance, and remote intervention significantly enhances the operational efficiency and longevity of the plant. Retgen’s compatibility with various inverter brands and models, coupled with its scalable architecture, makes it an invaluable tool for optimizing plant performance and reducing operational costs.

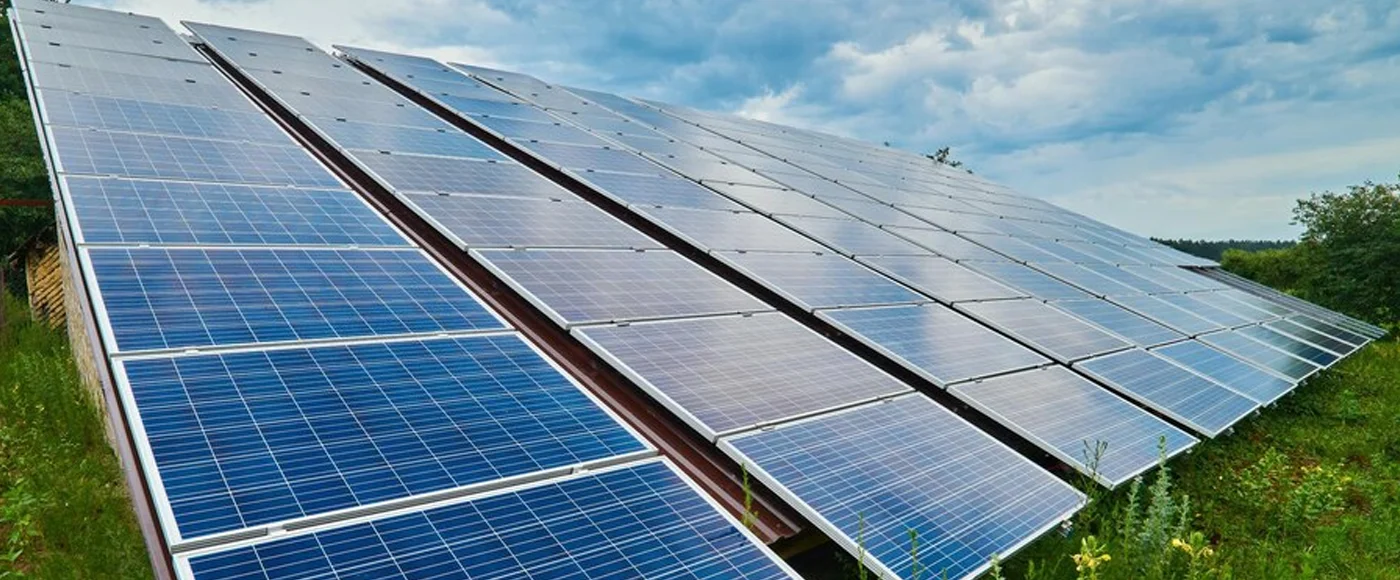

Solar Panel Parts and Accessories

Solar panel parts and accessories form the backbone of any solar power system, playing a crucial role in ensuring optimal performance and efficiency. Having managed numerous solar power projects, I have observed that the efficiency and reliability of a solar power system heavily depend on the quality and compatibility of its components. Understanding these parts and their functions is essential for anyone looking to invest in or manage a solar power installation.

Types of Solar Panels System Mounts

Mounting systems are critical to the installation and operation of solar panels, providing the necessary support and orientation for optimal sunlight exposure. There are several types of mounting systems available, each suitable for different applications and environments. Here are the main types:

  1. Roof-Mounted Systems: Roof-mounted systems are the most common, particularly for residential and commercial installations. They can be further categorized into flush mounts, which attach directly to the roof, and tilt mounts, which allow for angle adjustments to maximize solar exposure. In my experience, flush mounts are ideal for locations with optimal solar angles, while tilt mounts offer flexibility in areas with varying sun angles throughout the year.
  2. Ground-Mounted Systems: Ground-mounted systems are ideal for large-scale solar installations such as solar farms. These mounts are installed on the ground and can be adjusted for optimal tilt and orientation. Ground-mounted systems are easier to maintain and expand, making them a preferred choice for utility-scale projects. I have found that these systems are particularly effective in open areas with minimal shading.
  3. Pole-Mounted Systems: Pole-mounted systems involve mounting solar panels on poles, which can be either fixed or tracking. Fixed pole mounts are stationary, while tracking pole mounts follow the sun’s movement to maximize energy capture. Dual-axis trackers, which adjust both vertically and horizontally, are especially effective but require more maintenance. During my career, I have seen significant energy yield improvements with tracking systems, though they come with higher initial costs and maintenance requirements.
  4. Floating Mounts: An emerging solution for areas with limited land space, floating mounts are installed on water bodies such as lakes or reservoirs. This type of mount reduces land usage and can also improve panel efficiency due to the cooling effect of water. I have worked on projects where floating mounts not only conserved land but also provided innovative ways to integrate renewable energy into urban environments.

What To Look For In Solar Panels?

Choosing the right solar panels is a critical decision that affects the overall performance and return on investment of a solar power system. Several factors should be considered when selecting solar panels:

  1. Efficiency: Solar panel efficiency, or the ability to convert sunlight into usable electricity, is a key determinant of performance. High-efficiency panels produce more power per square meter, which is particularly important in space-constrained installations. Based on my experience, investing in high-efficiency panels can significantly enhance the energy yield, especially in areas with limited installation space.
  2. Durability and Warranty: Solar panels are long-term investments, so their durability and warranty are crucial. Look for panels that come with robust warranties covering performance and product defects for at least 25 years. Panels with proven durability in harsh weather conditions are essential for maintaining long-term performance. I have seen instances where panels with poor durability led to frequent replacements and increased maintenance costs.
  3. Temperature Coefficient: The temperature coefficient indicates how a panel’s efficiency decreases with rising temperatures. Panels with a lower temperature coefficient are better suited for hot climates, as they maintain higher efficiency under high temperatures. In regions with high temperatures, selecting panels with a favorable temperature coefficient is essential for sustaining energy output.
  4. Cost: While cost is always a consideration, it’s important to balance initial investment with long-term benefits. Higher-priced panels often offer better efficiency, durability, and warranties, which can result in greater savings over time. In my projects, I have found that opting for cost-effective panels without compromising on essential features leads to better overall financial performance.
  5. Aesthetics: For residential installations, the appearance of solar panels can be a significant factor. Some homeowners prefer all-black panels for a more streamlined look. While aesthetics may not impact performance, they can influence the decision-making process for residential clients.

Integrating advanced monitoring systems like Retgen by Rast Teknoloji can further enhance the performance and maintenance of solar power systems. Retgen provides real-time monitoring, predictive maintenance, and remote management capabilities, ensuring that solar installations operate at their peak efficiency. Its ability to support various inverter brands and its scalable, cloud-based architecture make it an invaluable tool for both small and large-scale solar power systems.

Understanding the components of solar panel systems, choosing the appropriate mounts, and selecting high-quality solar panels are critical steps in optimizing the performance and longevity of solar power installations. By incorporating advanced solutions like Retgen, solar power systems can achieve maximum efficiency and reliability, contributing significantly to sustainable energy goals.

Components of Solar Power Systems Frequently Asked Questions

What Is The Function Of The Solar Power System?

The primary function of a solar power system is to convert sunlight into usable energy. This energy can be in the form of electricity or heat, depending on the type of solar power system. Photovoltaic (PV) systems convert sunlight directly into electricity, which can be used to power homes, businesses, and even utility grids. Solar thermal systems, on the other hand, use sunlight to generate heat, which is then used to produce electricity through steam turbines or for direct heating applications.

What Are The Major Components Of The Solar System?

A solar power system consists of several key components that work together to harness solar energy effectively:

  1. Solar Panels/Collectors: These are the primary devices that capture sunlight. PV panels convert sunlight into electricity, while thermal collectors concentrate sunlight to produce heat.
  2. Inverters: In PV systems, inverters convert the direct current (DC) generated by the panels into alternating current (AC) suitable for use in the electrical grid or by household appliances.
  3. Mounting Systems: These structures support the solar panels, ensuring they are positioned optimally to capture sunlight.
  4. Storage Solutions: Batteries or other storage systems store excess energy for use when sunlight is not available.
  5. Monitoring and Control Systems: Advanced systems like Retgen by Rast Teknoloji monitor the performance and health of the solar installation, providing real-time data and remote management capabilities.

How Many Components Are There Of A Solar Heating System?

A solar heating system typically includes the following components:

  1. Solar Collectors: Capture and concentrate sunlight to produce heat.
  2. Heat Transfer Fluid: Transfers the absorbed heat from the collectors to the storage or usage point.
  3. Heat Exchangers: Facilitate the transfer of heat from the fluid to water or another medium.
  4. Storage Tanks: Store the heated water or fluid for later use.
  5. Pumps and Controllers: Circulate the heat transfer fluid and control the system’s operation.
  6. Backup Heaters: Provide additional heating when solar energy is insufficient.

How Solar Systems Work?

Solar systems work by capturing sunlight and converting it into energy through various processes. In a photovoltaic (PV) system, solar panels made of semiconductor materials generate electric current when exposed to sunlight. This DC electricity is then converted into AC by inverters, making it suitable for use in homes and businesses. In solar thermal systems, collectors focus sunlight to heat a fluid, which then generates steam to drive turbines and produce electricity. Advanced monitoring systems, like Retgen, ensure these processes run efficiently by providing real-time data and control.

What Is The Main Use Of Solar?

The main use of solar energy is to generate clean, renewable power for a wide range of applications. This includes:

  1. Electricity Generation: Solar panels are used in residential, commercial, and utility-scale installations to produce electricity.
  2. Heating: Solar thermal systems provide hot water and space heating for buildings.
  3. Industrial Processes: Solar heat can be used in various industrial processes, reducing reliance on fossil fuels.
  4. Remote Power: Solar energy is ideal for remote or off-grid locations, providing power where traditional infrastructure is unavailable.
  5. Supplementary Energy: Solar systems can supplement existing power sources, reducing overall energy costs and environmental impact.

These uses highlight the versatility and importance of solar energy in promoting sustainable and eco-friendly energy solutions.
